Product details
protected by All-inclusive-box ROBUSTA with GPS systemInternational standard accredited by ASTM E2835-11
According to german technical regulations TP BF-StB section B 8.3
for soil and stone pavements in road constructions
Standard RIL 836 Deutsche Bahn AG (GERMAN Railway)
Standard Austria RVS 08.03.04
Standard Spain/Mexico UNE 103807-2: 2008
Standard Australia Q258AVOICE-Navigation in English languageHigh-performance rechargeable battery for 600 printouts / 2000 measurements
12 months warranty according to warranty terms and conditions
Calibration certificate acc. to German Standard TP BF-StB Teil B 8.4
Detailed English Manual
Free APP for iOS and Android
control TERRATEST 8000 WIRELESS via your smartphone and send test sheet directly from construction site

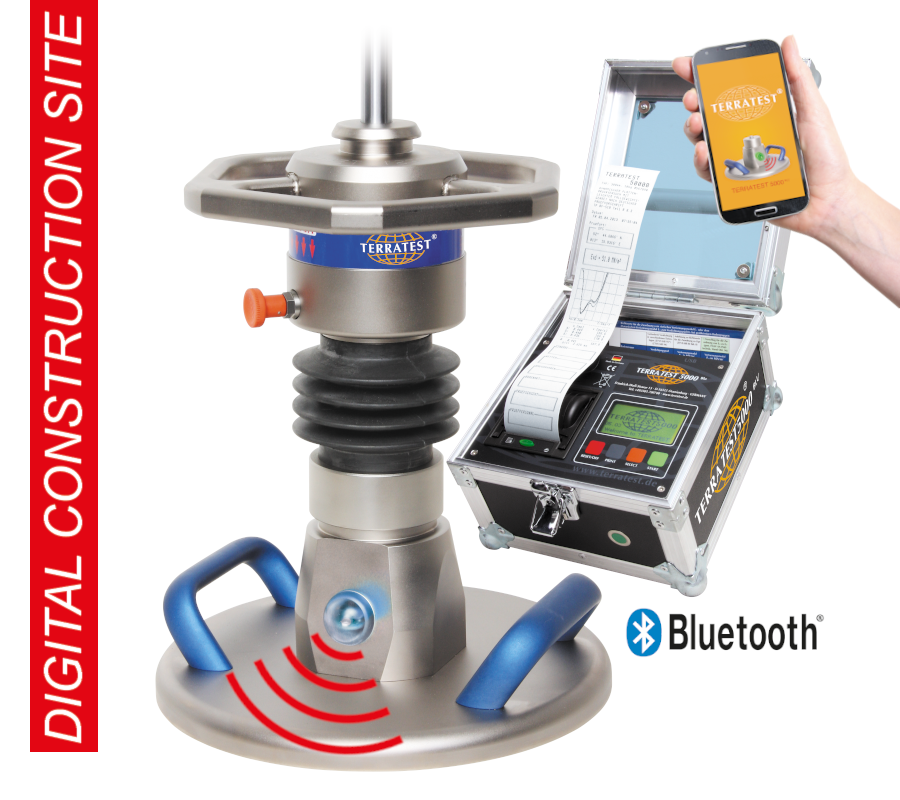

Mechanical system
Loading device with 10 kg drop weight (measurement range Evd 15-70 MN/m² equals Ev2 over 120 MN/m²)
Load plate 300 mm with precision acceleration meter and Bluetooth transmission
Control the device directly with your smartphone even without using TERRATEST testing computer
Angled design load plate handles for mobile testing system “CARRELLO“
Ergonomic hexangular weight-catching grip for comfortable handling on the construction site
Safety grip with integrated spirit level, tightly screwed to the guide rod
Electroless nickel coating, especially suitable for construction sites, since largely resistant to alkaline constituents in lime, cement, concrete etc.
______________________________________________________________________________________
Testing computer in weatherproof box “ROBUSTA”
Large impact resistant inspection window and external buttons
Operation of the device possible with the cover closed
Testing computer remains protected against dust, dirt and rain while working on the construction site to customer
______________________________________________________________________________________
GPS-System (latest generation)
exact test position as well as print-out and saving
______________________________________________________________________________________
Integrated thermo-printer
immediate print-out on site with GPS-coordinates
______________________________________________________________________________________
USB-STREAMING-device (as request)
dongle for wireless data transfer from load plate to iPhone or Android or tablet and data transfer to PC
______________________________________________________________________________________
Voice-Navigation
voice assistance in english language
______________________________________________________________________________________
Free APP for Android and iOS smartphone
Send your test results directly from load plate to your smartphone, TERRATEST testing computer is not neccessary to perform tests
______________________________________________________________________________________
for illustration of settlement curves, s/v value and Evd-value
______________________________________________________________________________________
High-performance rechargeable battery „EVERfull“
extremely long service life for 600 print-outs/2000 measurements
______________________________________________________________________________________
Internal memory
stores over 2000 tests, PC interface for USB
______________________________________________________________________________________
Charger
100-240 V input voltages
12 V car charger
______________________________________________________________________________________
USB data transfer cable for reading out the internal memory via the PC
______________________________________________________________________________________
Switchable to 15 kg loading device, double force impact
______________________________________________________________________________________
ONLINE web based software „TEOLO“
Presentation of testing points with Evd-value, date and time in satellite picture (can be turned off)
Individual data records with user-designed company logo and color coded settlement curves in A4 format
Statistical analysis of the test in accordance with German standard TP BF StB Part B8.3
Detailed English user guide (PDF-file)
Information cards: Quick Start Guide, Rules for Proper Use, Correlation static/dynamic,
Chart Ev2 -Evd- minimum requirements according to German standard ZTVE
______________________________________________________________________________________
Packaging
2 Cartons
Carton 1
Dimensions: 40 x 36 x 52 cm
Weight: 23 kg
Carton 2
Dimensions: 120 x 36 x 34 cm
Weight: 19 kg
