Light Weight Deflectometer
Lightweight Deflectometer – buy for best price!
Light Weight Deflectometer for dynamic plate load test is a light weight portable device to measure the bearing capacity of unbound subgrades and subsoils. It is a perfect tool to determine the compaction quality of existing ground soil before starting, subbase layers before overlay, highly compacted layers, granular layers and backfill material in earthworks and road constructions. Using TERRATEST® LWD is the easy and fast way to check quality of soil compaction in construction sites. One single person needs only two minutes to perform the test, no load vehicle as counterweight is needed.
Lightweight Deflectometer of TERRATEST® is fully equipped with GPS system, printer, high-performance rechargeable battery and PC-software. The Light Weight Deflectometer speakes and navigates the user through the test procedure.
TERRATEST® soil testing equipment offers: absolutely high-quality made in Germany and best price guarantee, because you buy directly from the German manufacturer. No extra charges for distributors!
TERRATEST® is the world leader in development and manufacturing of Light Falling Weight Deflectometer equipment. We guarantee an unbeatable price for our cable device of 2,990 EURO, because you buy directly from German manufacturer.
2,990EURO
ALL EXTRAS INCL.
Buy for best price!
Buy your new Light Weight Deflectometer with Best Price Guarantee directly from the german manufacturer TERRATEST®. If you will find a device with same features for a better price, we refund the difference to you. Our Light Falling Weight Deflectometer is the most sold LWD in the last 4 years worldwide. This makes you sure that TERRATEST® offers an unbeatable price.
The benefits of our
Lightweight Deflectometer
- Self explaining compaction test equipment
- 2 minutes / 1 person use
- Worldwide accepted by
International Standards - Lightweight Deflectometer

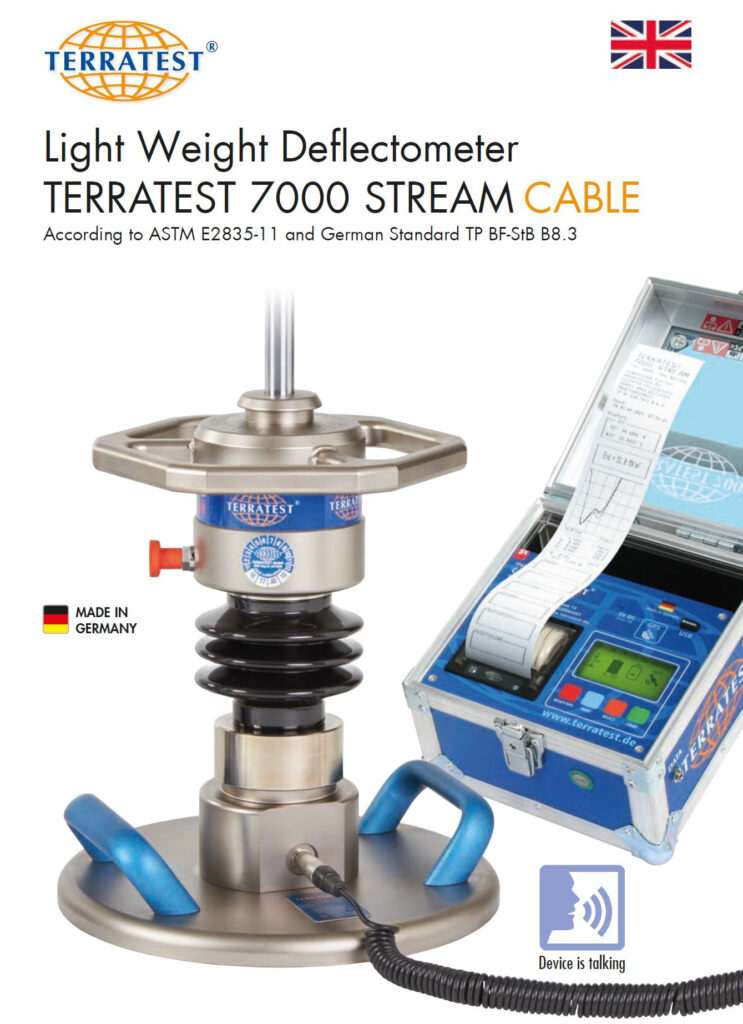

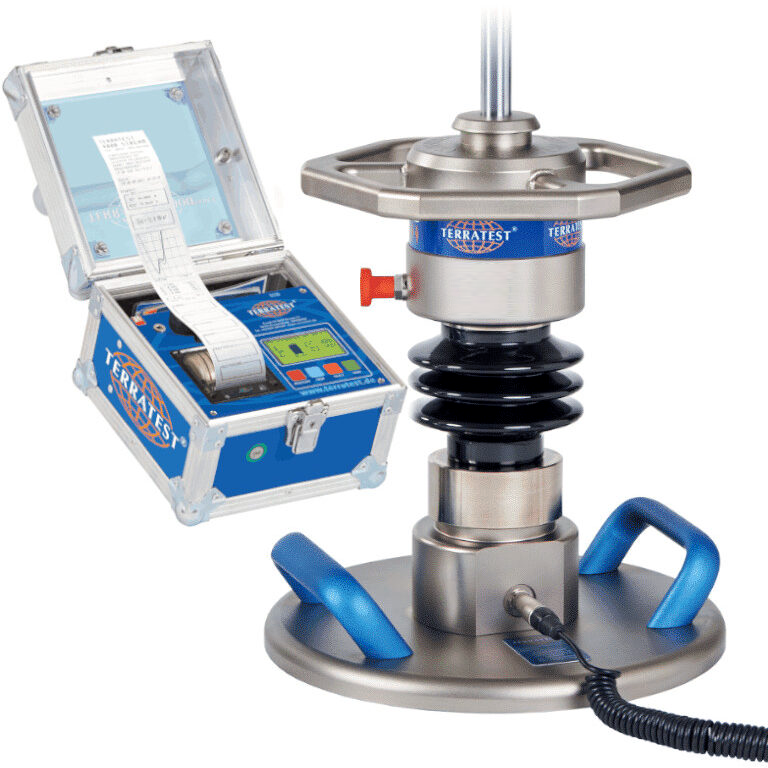

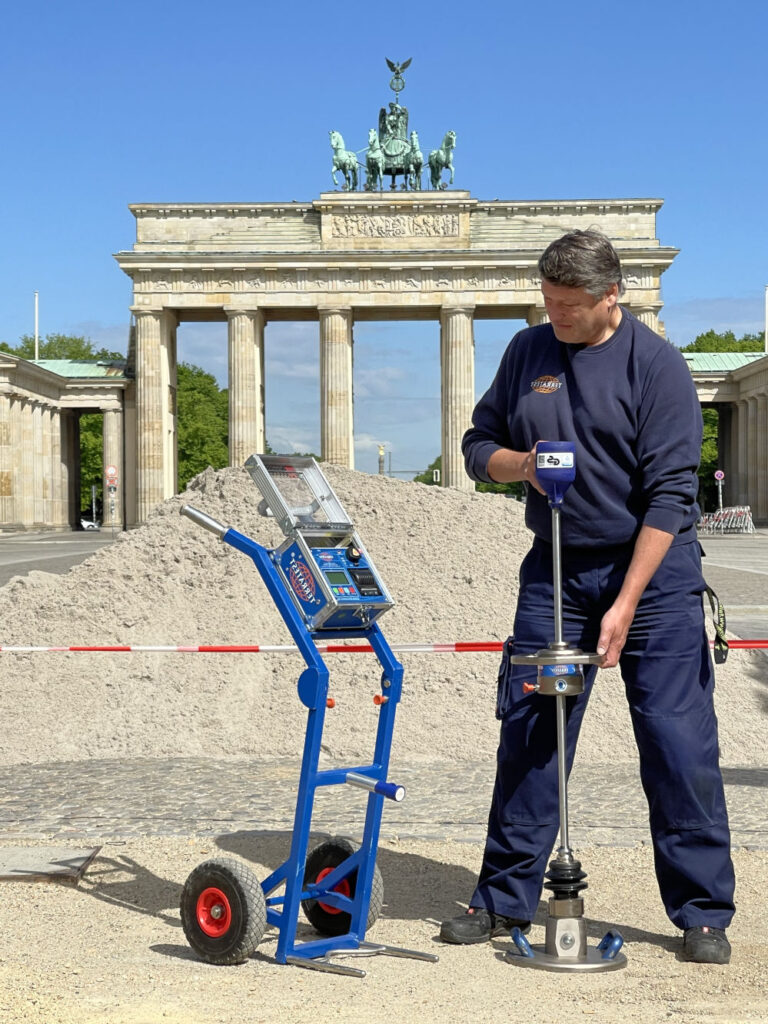

Cable: TERRATEST 7000 STREAM

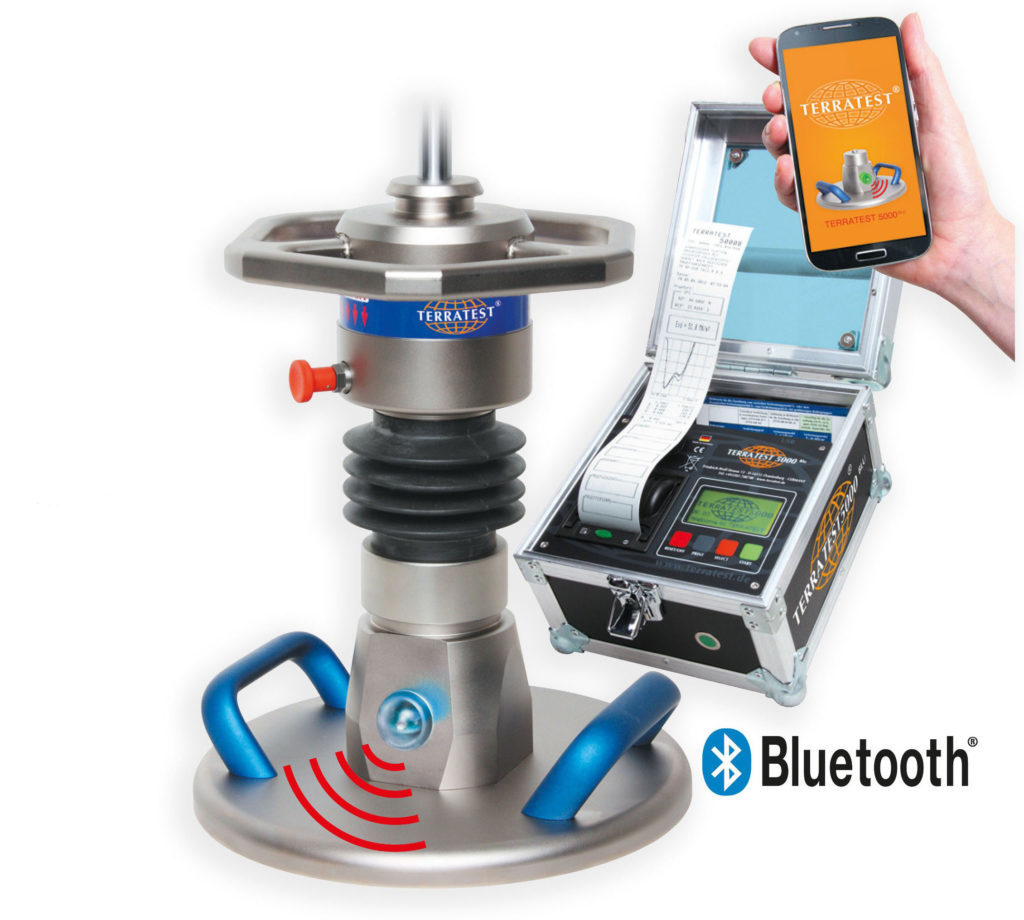

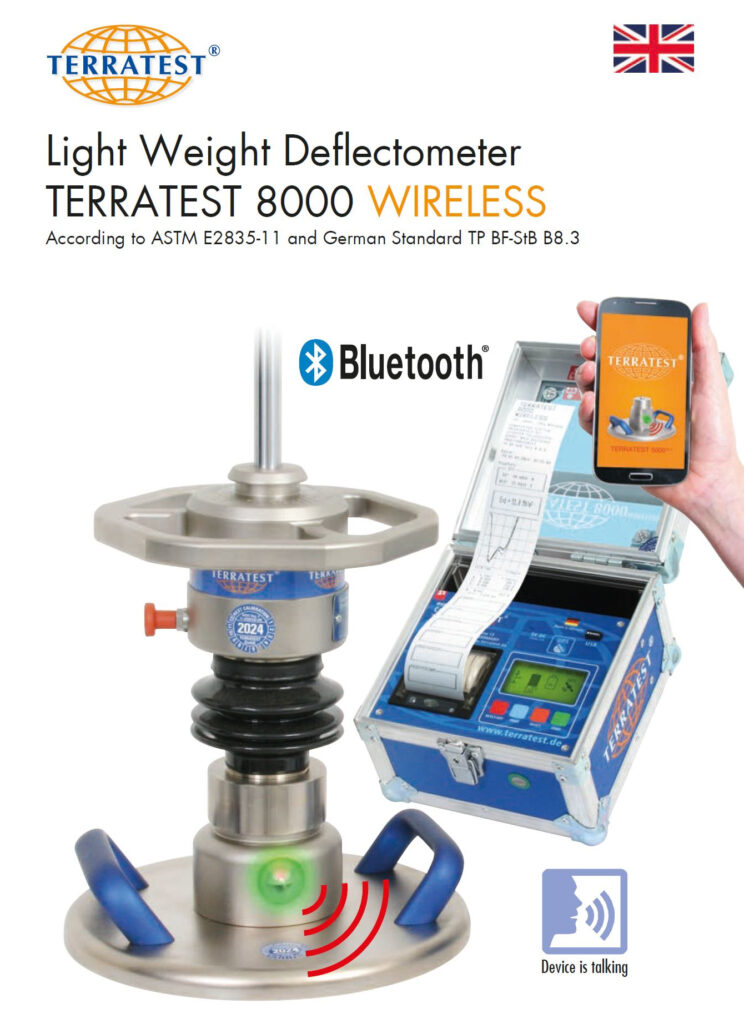

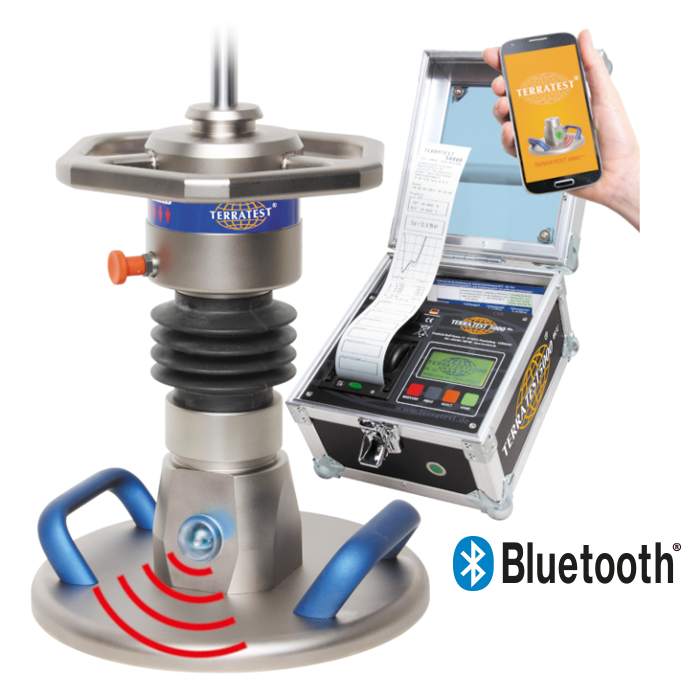

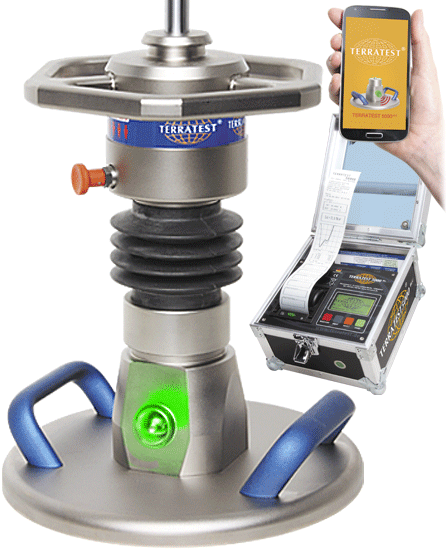

Bluetooth: TERRATEST 8000 WIRELESS - WORLD’S FIRST:
Wireless testing via Bluetooth,
Bluetooth connection between load plate and measuring electronic - WORLD’S FIRST:

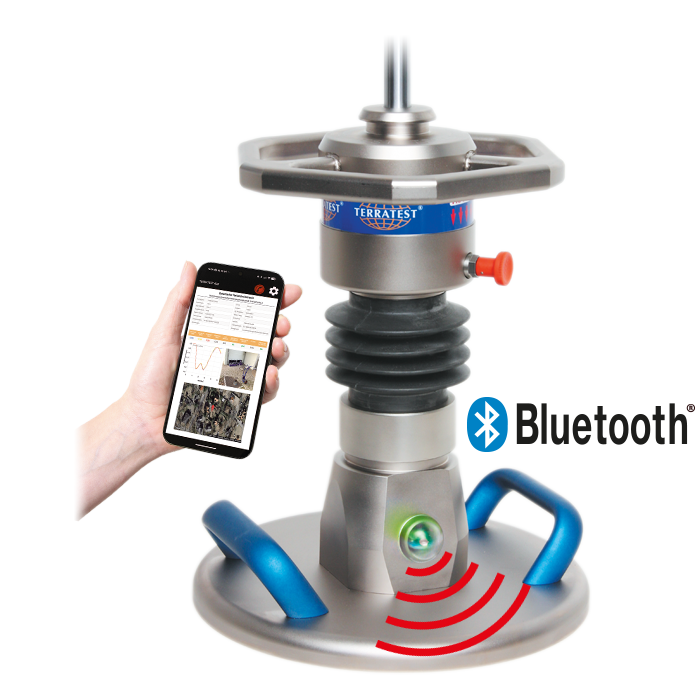

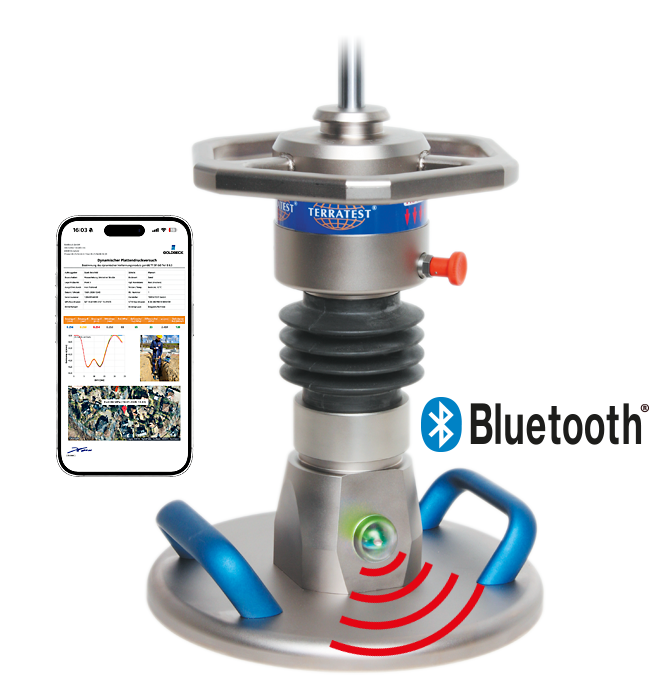

iOS and Android APP allow to control the Light Weight Deflectometer via smartphone without using the electronic box - Weatherproof box with one button control, protecting all electronic parts
- GPS system with graphic display
- Integrated printer for real time printout in construction site
- High-performance rechargeable power battery for 2000 tests or 600 printouts
- Webbased PC software for evaluation, management and analysis of test results
- MADE IN GERMANY,
in-house development, in-house production, competent, manufacturer support
Click here to receive a personal quotation for your soil testing equipment!

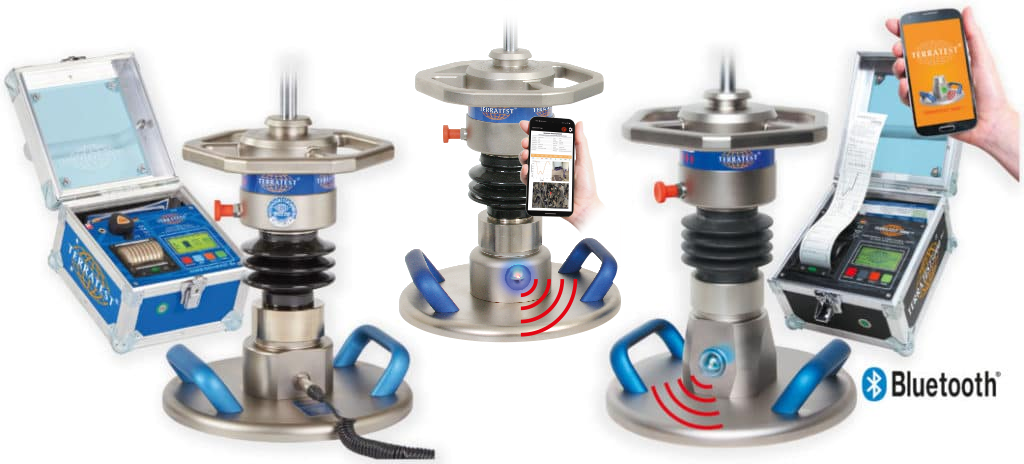

CABLE or BLUETOOTH:
We offer both models

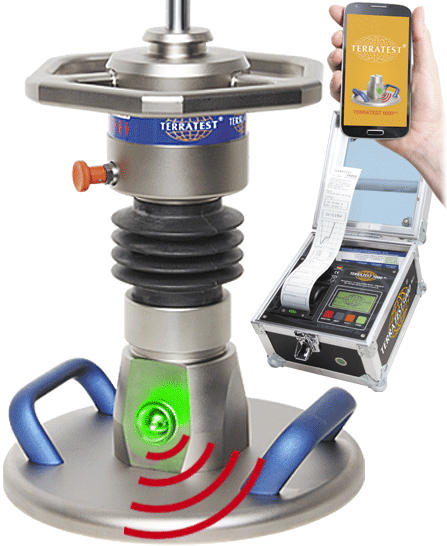

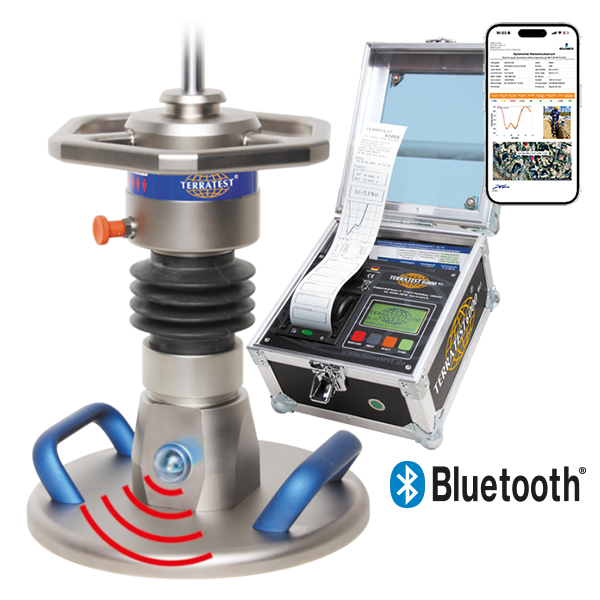

Light Falling Weight Deflectometer TERRATEST 8000 WIRELESS offers a reliable data transfer, quick pairing and extremely powerful rechargeable battery. You can perform up to 2000 tests or 600 printouts with the powerbattery.
TERRATEST 8000 WIRELESS is particularly suitable to perform many tests in large area. Repairs of the socket of the load plate or of the measurement electronics – the typical “Achilles’ heel” of the device – will no longer be necessary thanks to its wireless operation. NO WIRES, NO PROBLEM!
The socket of the load plate has always been the Achilles’ heel of traditional Light Weight Deflectometer with wire connection. Throughout the entire life (15 years) of a Light Weight Deflectometer, the measuring cable has to be plugged into the load plate on the ground every time a test is being conducted. The forces that arise during the measuring process strain the sockets and cables over time. The conditions in a utility trench and road construction are generally an adverse environment for wires and sockets.
That’s why experts are choosing our Light Weight Deflectometer TERRATEST 8000 WIRELESS for dynamic load plate tests!
For different overseas standards TERRATEST® produces the TERRATEST 9000 LWD Light Weight Deflectometer according to ASTM E2583-07. This device works with a central geophone and an integrated load cell.
Light Weight Deflectometer Perfect in pipeline construction
Light Weight Deflectometer is the best tool for compaction test in hard to reach places such as backfill in trenches. Most requested is the TERRATEST® Bluetooth model for this application, because user can connect the load plate of the Light Weight Deflectometer directly to their own smartphone. The measuring computer is not needed anymore for test procedure.
Lightweight Deflectometer: Functionality

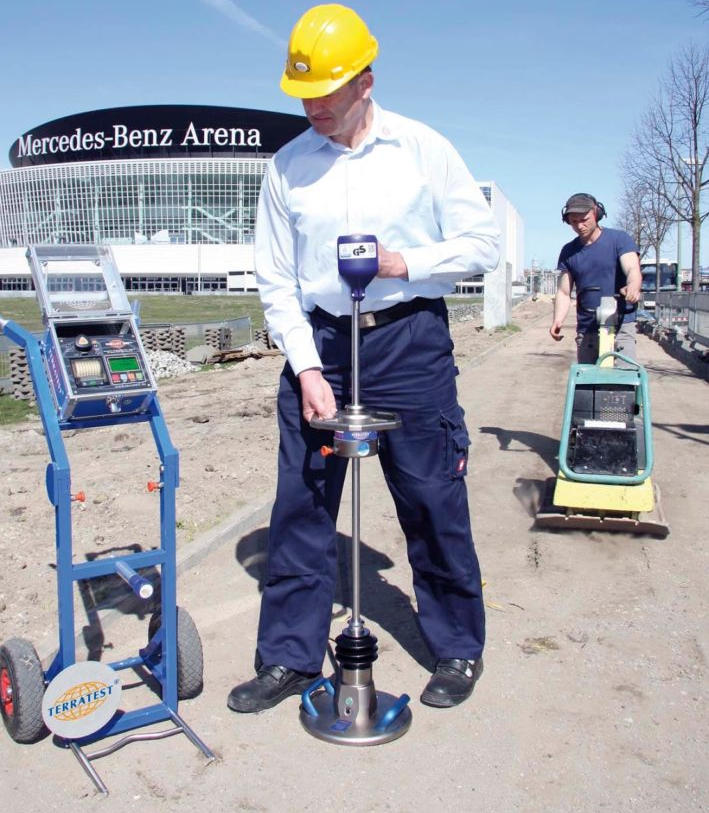

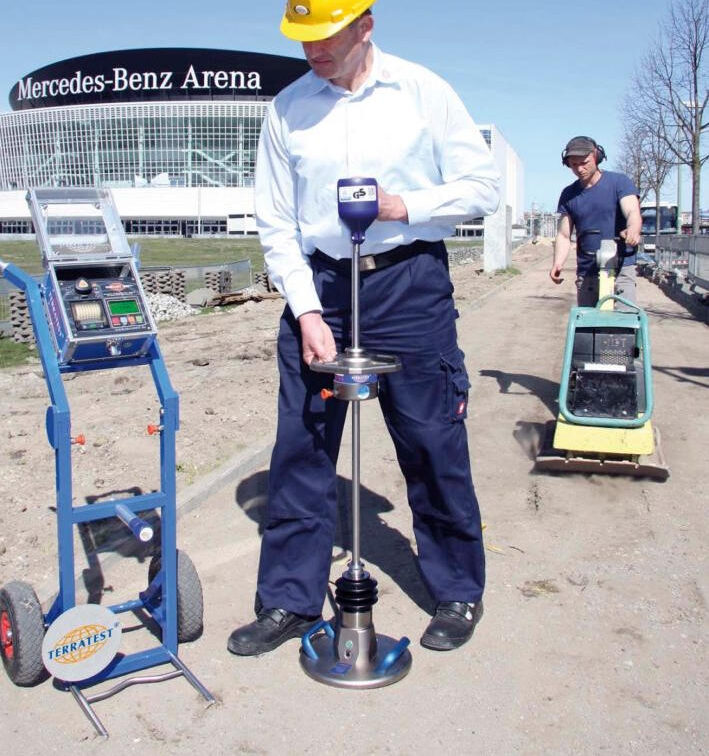

Light Weight Deflectometer is the ideal equipment for construction companies to check the compaction quality of soil. It is used in earthworks, civil engineering, road construction, canal and pipeline construction, for laying power, fibre optic and broadband cables, in gardening and landscaping, in sports ground construction and railway track construction. For higher degrees of compaction that exceed 120 MN/m² EV2 TERRATEST® is manufacturing the Medium Weight Deflectometer which works with double force impact. In just two minutes, even inexperienced users can test, print and archive the quality of soil compaction with the handy measuring device. The Light Weight Deflectometer from TERRATEST® is equipped with voice navigation and a GPS system. The voice navigation guides the users through the measurement process via spoken commands which makes the operation of our Light Falling Weight Deflectometer child’s play in every sense of the word.
Light Falling Weight Deflectometer: Measurement Process

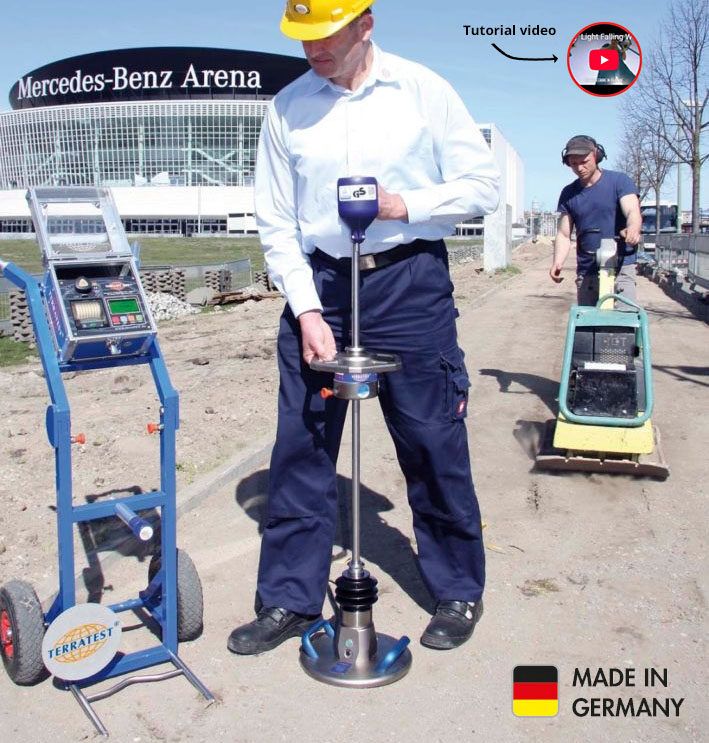

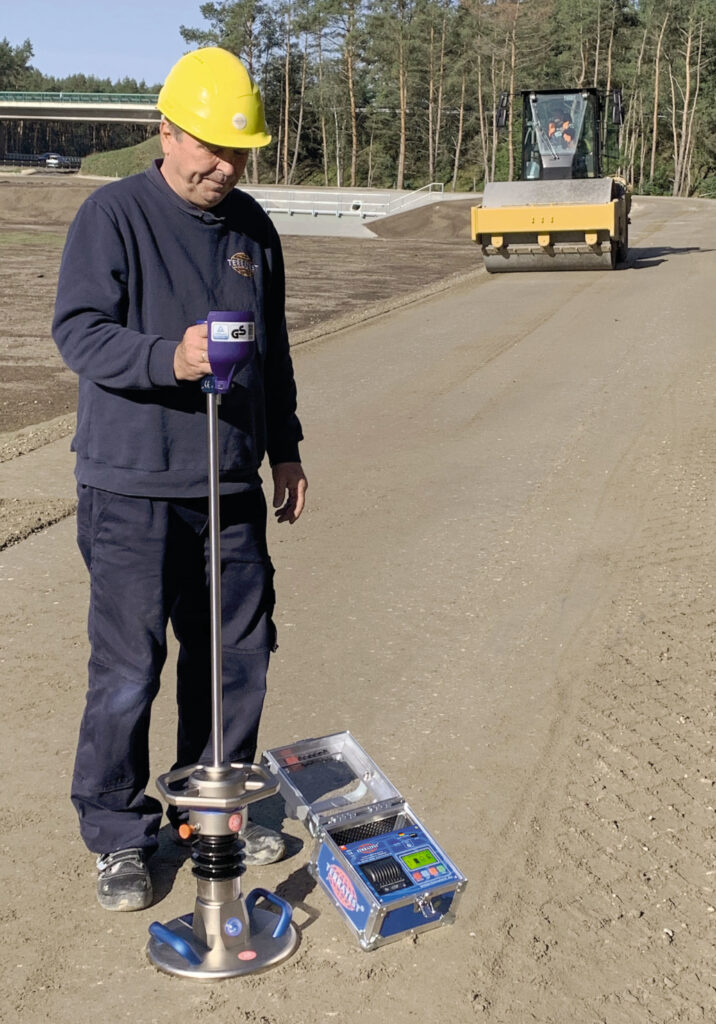

The measurement process works as follows: Place the load plate with the sensor on the ground that needs testing and connect it to the measuring computer. Now place the loading device on the load plate and switch on the electronic maeasuring computer. First, perform three initial impulses and then three measurement impulses, simply following the voice navigation announcements. This will guide even inexperienced users safely and quickly through the measurement process. The display on measuring computer shows the deflection in mm and the deflection curve after each impulse. After the third measuring impulse, the display of the measuring computer automatically shows the test result, the EVd value in meganewtons per square meter and the distance/speed ratio (s/v value). In less than two minutes, your own staff can carry out the control of compaction quality yourself on the construction site. This means you can avoid the high costs and waiting times that often arise when hiring an external testing laboratory. Often the cost of the device pays for itself within a few months.
Light Weight Deflectometer: Easy testing supported by many features
Our Lightweight Deflectometer testing equipment enables you to print or send the test result to your PC, including the date, time and GPS data, straight from the construction site. TERRATEST 7000 STREAM also enables the user to stream the measurement results directly from the electronic measuring computer to their smartphone using the streaming USB-device. This means that with the cable model too, you have the possibility to essentially send data to the client in real time by email, directly from the construction site. The Light Weight Deflectometer is therefore even more convenient to use. The TERRATEST® “TEOLO” web based software will help you prepare a highly professional presentation of your compaction report. This consists of an individual protocol, statistical evaluation and Google®-Maps overview of all measurements carried out on the respective construction site by your Light Weight Deflectometer.
| Technical details Light Weight Deflectometer according ASTM E2835-11 |
||
|---|---|---|
| TERRATEST 7000 STREAM (CABLE) | TERRATEST 8000 WIRELESS (BLUETOOTH) | |
| Electronic measuring computer "ROBUSTA" | ||
| Dimensions "ROBUSTA"-Box (L x W x H) | 230 x 220 x 170 mm | 230 x 220 x 170 mm |
| Weight "ROBUSTA"-Box, incl. measuring computer | 4 kg | 4 kg |
| Deflection range 0,1 to 2,0 mm ± 0,02 mm | • | • |
| Measuring range Evd < 225 MN/m² | • | • |
| Temperature range 0 to 40 °C | • | • |
| Extremely suitable for construction sites, protection class IP53 against dust and water, shock resistant, TÜV certified | • | • |
| Measuring cable using "Klinke"-Connection | • | |
| Graphic display monochrom, illuminated | 40 x 72 mm | 40 x 72 mm |
| High performance 32bit-processor | • | • |
| GPS-system, precision < 10 m | • | • |
| USB-device for data storage | • | • |
| Thermal printer | • | • |
| Bluetooth-System, Bluetooth Low Energy 4.1, range 10 m |
• | |
| Voice-Command, spoken menu navigation, 10 languages available |
• | • |
| Capacity of internal memory | 2000 | 2000 |
| Panasonic power battery, 6,9 Volt, rechargeable Capacity: 2000 Tests or 600 printouts, lifetime 5 years/20°C |
• | • |
| Electronic measuring computer Load plate Bluetooth (8000 WIRELESS) |
||
| Deflection range 0,1 to 2,0 mm ± 0,02 mm | • | |
| Measuring range Evd < 225 MN/m² | • | |
| Temperature range 0 to 40 °C | • | |
| Extremely suitable for construction sites, protection class IP53 against dust and water, shock resistant, TÜV certified | • | |
| High performance 32bit-processor | • | |
| Bluetooth-System, Bluethoot Low Energie 4.1, range 10 m |
• | |
| Lithium-Ionen-battery, 9 V, recharcheable, Capacity 5000 Tests, Lifetime 6-8 years/20°C |
• | |
| LWD load mechanism 10 kg falling weight |
||
| Steel ST52, chemically nick plated | • | • |
| Total weight 15 kg +/- 150 g | • | • |
| Mass of falling weights 10 kg +/- 100 g | • | • |
| maximum impactforce 7,07 kN +/- 70 N | • | • |
| Time of impact 17,0 ± 1,5 ms | • | • |
| Spring element 17 disk springs | • | • |
| Load plate | ||
| Steel ST52, chemically nick plated | • | • |
| Diameter 300 mm +/- 0,5 mm | • | • |
| Plate thickness 20 mm +/-0,2 mm | • | • |
| Plate weight 15 +/- 250 g | • | • |
| Acceleration meter | • | • |
| 2 grips, Aluminium | • | • |
| Load head with Bluetooth-System | • | |
