Dynamic Load Plate Test TERRATEST 7000
Dynamic Load Plate Test - the doing yourself compaction test
Dynamic Load Plate Test with TERRATEST 7000 STREAM is ideal for testing the bearing capacity, in road construction, earthworks, pipeline and cable works, backfills, airport runway/taxiways, dam construction, railway track beds, embankments and foundations. The equipment for dynamic load plate test with cable connection has a hughe price-performance ratio because all features are already included and the nice price is unbeatable worldwide. You can order your TERRATEST 7000 STREAM in our online shop, we have all devices in stock ready for dispatch.

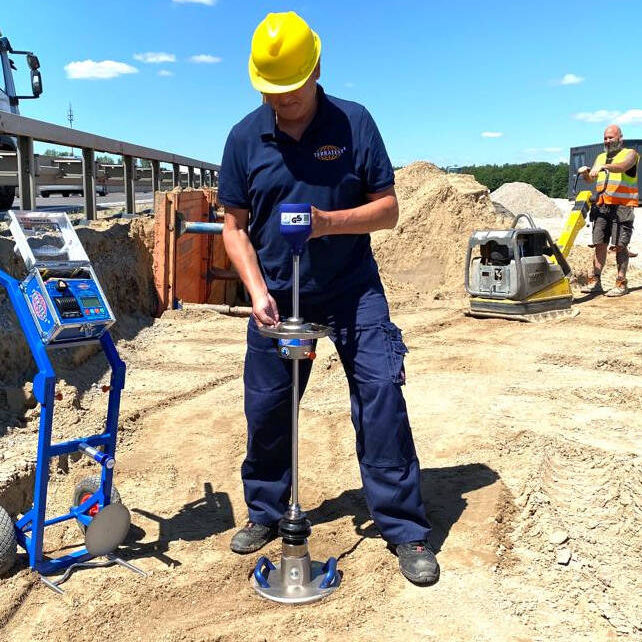

TERRATEST 7000 STREAM with cable connection and voice navigation is particularly popular due to its user-friendly one button handling. Even non-experts are able to perform the dynamic load plate to test compaction quality within two minutes at the construction site. The measurement electronics are equipped with a printer, GPS system, USB flash drive as storage medium, and a graphic display. All components are being supplied by a central, powerful, rechargeable highperformance battery. The weatherproof electronics box protects the measurement electronics even at rough site conditions. Thanks to a large inspection window the electronics can be operated with the lid closed via an external button during the test. The measurement electronics of the TERRATEST 7000 STREAM have undergone a test regarding the IP protection classes. The test provides insight in terms of under which environmental impacts the test Computer withstands water and dust permanently. The suitability of the devices for outdoor use has been confirmed by their protection level which has been classified as IP 53. TERRATEST 7000 STREAM was certified recently with the TÜV GS mark by TÜV Rheinland.
- Dynamic load plate test worldwide accepted
according to ASTM E2835-11 and other International Standards - Easy and quick:
Audio guided and self-explaining - No experience required, even for non-profs
- One person needs 2 minutes for the test
- Avoid settlement issues and extra costs for guarantee works
- Safe time and money every day
- Pilot your compaction works and speed up construction time
The “Every Day One”
Testing normal compaction
Light Weight Deflectometer

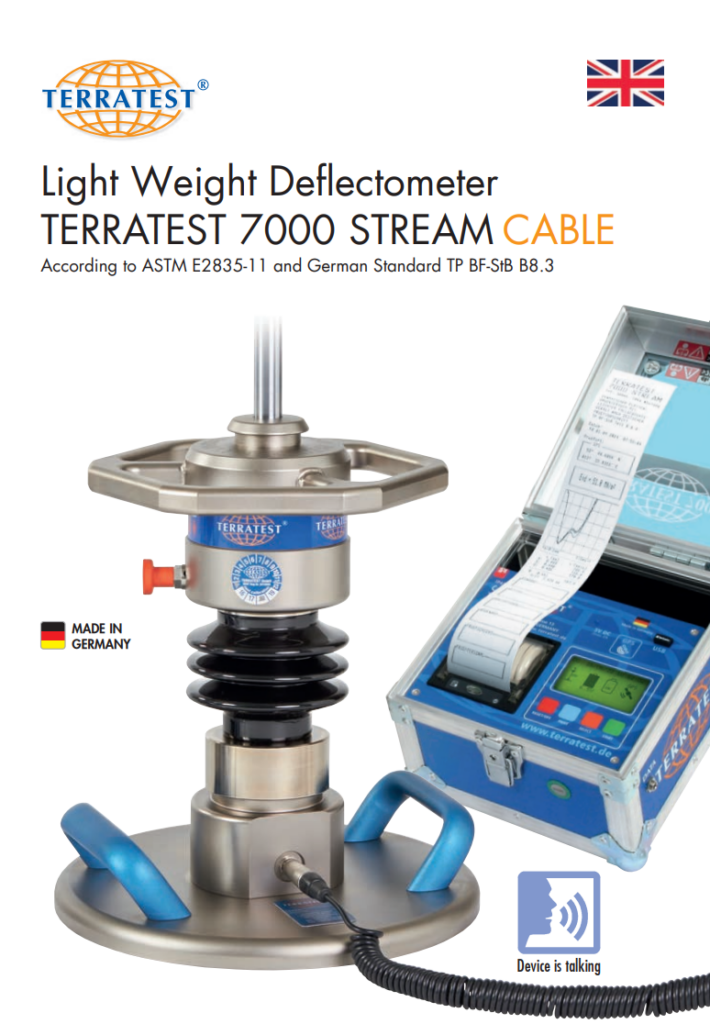

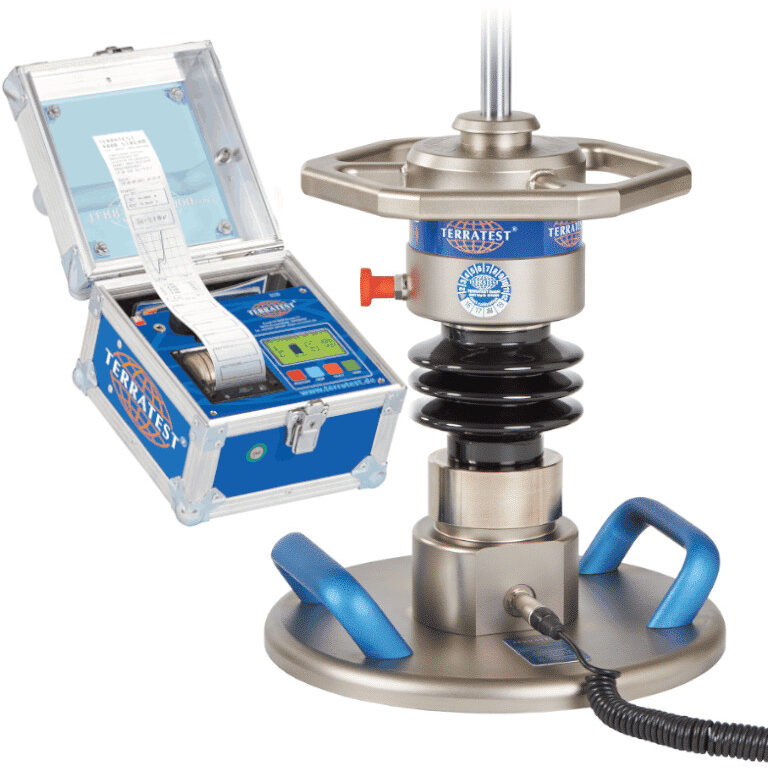

TERRATEST 7000 STREAM (Cable)
Equipment for compaction test in road construction, earthworks, civil & railway engineering
All extras included:
Voice assistant, GPS-System, Printer, WiFi for APP connection, Graphic-Display, EVERFULL-Battery (rechargable)
Standards:
ASTM E 2835-11
TP-BF StB Part B8.3
RIL 836
UNE 103807-2:2008
2,990 €
Dynamic Load Plate Test quick and easy
Dynamic plate load test is a reliable test to avoid damage in earthworks, road construction and civil engineering. The audio-guided test is worldwide accepted. The determined dynamic deflection module Evd (according to the Technical Test Code for Soil and Rock Mechanics in Road Constructions – TP BF-StB Part B 8.3) is measured in Megapascall (MPa). It is being used in road and pipe construction as well as in earthworks, in order to judge the compaction quality of mounted layers, even while still in the construction phase. Thanks to the dynamic load plate test the executing company is able to assess the correct compaction of the ground layer by layer with their own staff. If the different layers are only being checked at the end of the earthworks, for example by using dynamic probing, extensive costs for dismounting, re-compacting and re-assembling the ground must be expected in case of poor compaction quality of the lower layers.
TERRATEST 7000 STREAM is especially suitable for compaction tests in areas that are difficult to access like utility trenches, shafts and backfills. Furthermore, tests can be performed throughout the compaction works, allowing for these to be conducted precisely and effectively. A further advantage is that the entire area, not just parts, of the construction field can be checked for a homogeneous compaction quality in a minimum of time. The test results can be evaluated and printed directly on site.
Thanks to the easy, intuitive operability of TERRATEST’s measuring devices even non-experts can perform the dynamic load plate test.
What is a Dynamic Load Plate Test?
The dynamic load plate test is a rapid testing method in accordance with TP BF-StB Part B 8.3 used to assess the load-bearing capacity of soils and rock in earthworks and road construction. The test can be performed by a single operator using a Light Weight Deflectometer (LWD).
During the test, a 10 kg drop weight is released from a defined height of approximately 71 cm onto a circular steel load plate with a diameter of 300 mm. The resulting soil deformation is measured by a sensor mounted at the center of the load plate. Based on this deformation, the measuring unit calculates the dynamic deformation modulus Evd in MPa, which is an indicator of soil stiffness and bearing capacity.
Advantages of the Dynamic Load Plate Test
Compared to the static plate load test, the dynamic load plate test offers several advantages:
- Easy operation: The test can be carried out reliably and reproducibly even by non-specialist personnel.
- Very short testing time: One measurement takes about 2 minutes, whereas the static plate load test requires around 30 minutes.
- Area-wide quality control: Due to the short testing time, many measurements can be performed in different layers, ensuring a high level of construction quality.
- Suitable for hard-to-access locations: Tests can easily be performed in trenches, narrow construction areas, and backfilled zones.
- No counterweight required: Unlike the static method, no roller or other counterweight is needed.
- No interruption of construction work: Compaction work can continue during measurements; operating rollers or other machinery do not affect the test results.
How is the Dynamic Load Plate Test performed?
The test is carried out using a Light Weight Deflectometer (LWD) consisting of:
- a loading device with a 10 kg drop weight and guide rod,
- a circular load plate with a diameter of 300 mm, and
- a settlement measuring system, which may be a measuring computer or a smartphone with a dedicated app.
First, three preloading drops are applied, followed by three measuring drops. The drop weight is released from the upper release mechanism and strikes an impact plate, which transfers the force impulse to a spring package consisting of 17 disc springs. The impulse is then transmitted to the load plate, which must rest fully and evenly on the surface being tested.
A sensor mounted at the center of the load plate measures the vertical deflection and transmits the data to the measuring unit. The unit then calculates the dynamic deformation modulus Evd (MPa). This value represents the stiffness of the soil and therefore provides reliable information about the degree of compaction and load-bearing capacity.
Which equipment is used to perform the Dynamic Load Plate Test?
The dynamic load plate test is a proven method for determining the load bearing capacity and compaction quality of soil in road construction, earthworks, pipeline installation, and foundation preparation. Reliable results from a dynamic load plate test ensure safe construction processes and long-term structural performance.
A Light Weight Deflectometer enables fast, precise, and on-site execution of the dynamic load plate test. The device generates a defined impact load and measures the resulting surface deflection to calculate the dynamic modulus in MPa. Within just a few minutes, engineers and contractors receive reproducible measurement results for immediate evaluation of soil compaction and load bearing capacity.

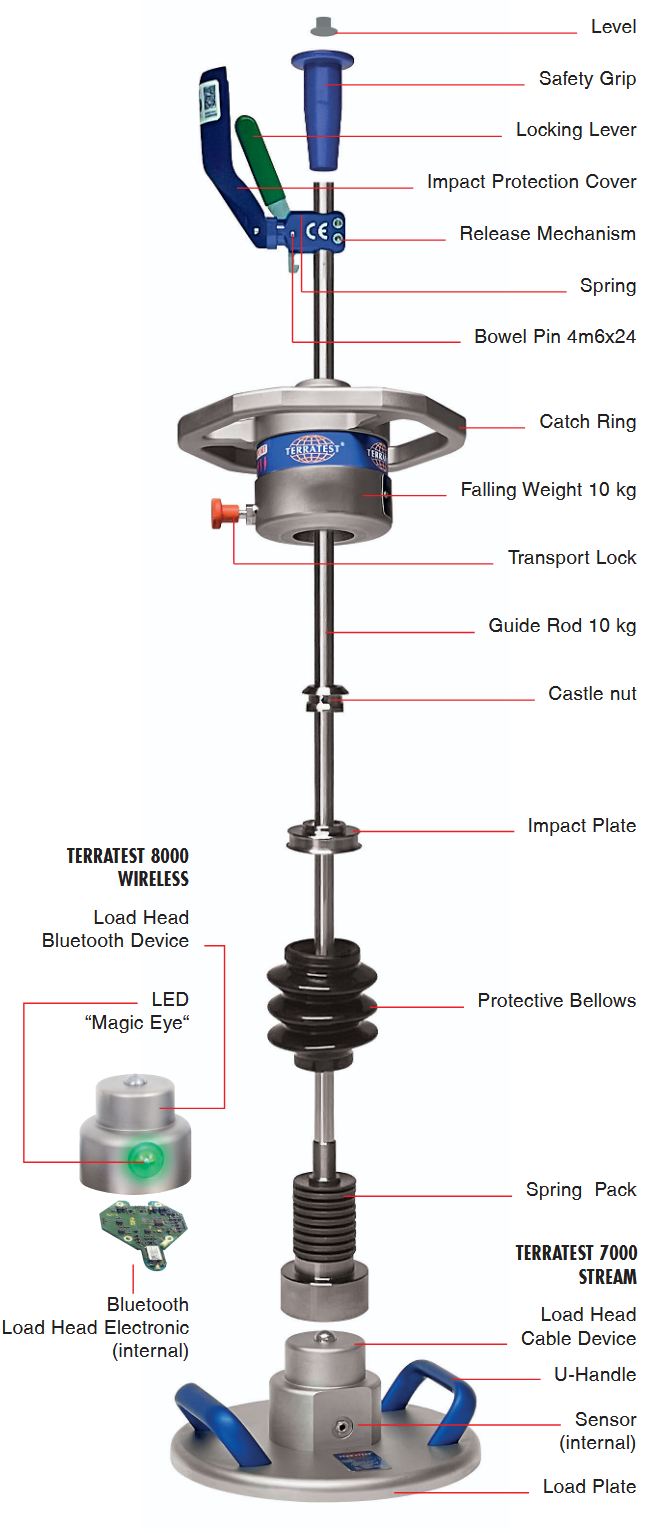

As illustrated in the adjacent exploded view, the Light Weight Deflectometer used for the dynamic load plate test consists of a hardened drop weight, a precision guide rod, a heavy-duty load plate with an integrated acceleration sensor, and a calibrated spring system that transfers the impact force in a controlled impulse duration. The robust mechanical design complies with ASTM E2835-11 and TP BF-StB Part B8.3, ensuring reliable and comparable measurement results.
All components are manufactured from high-strength structural steel to guarantee maximum durability under harsh construction site conditions. Combined with intuitive operation and digital documentation options, the Light Weight Deflectometer delivers a professional solution for accurate and repeatable dynamic load plate test measurements worldwide.
TERRATEST 8000 WIRELESS

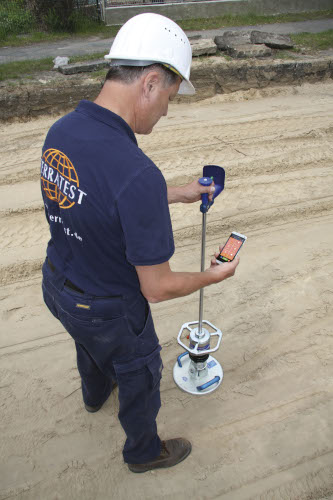

Control your Light Drop Weight Tester easily with smartphone. TERRATEST 8000 WIRELESS is the world’s first Light Drop Weight Tester using app for Android and iOS on construction site.
Service and calibration center
TERRATEST offers calibration, repair and service for dynamic load plate devices. We perform calibration according to German standard TP BF StB, Part B 8.4 and international standard ASTM E2835-11.

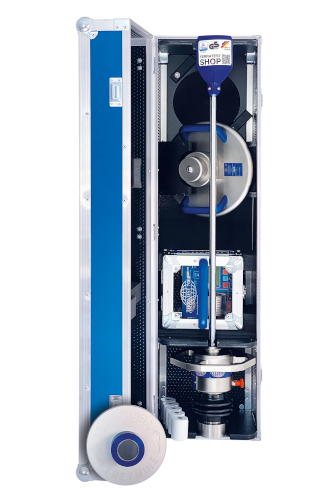

Transportbox MILANO
TERRATEST offers the Transportbox MILANO as a huge accessory to guarantee a save trip of the equipment. For convenient handling the box is equipped with rolls.
The new TERRATEST 7000 STREAM was developed on the basis of TERRATEST 4000 STREAM, the best-selling model of the last years. It was presented for the first time at the GaLaBau 2024 in Nuremberg. All components, such as GPS system, printer, graphic display, buttons, powerful rechargeable battery, and USB drive, are compactly fitted into the electronics box “ROBUSTA” to always guarantee an easyand protected handling on site.
Dynamic load plate TERRATEST 7000 STREAM uses an USB drive for comfortable transfer of the test data to a PC. With the included web based software “TEOLO” the evaluation of the test data is absolutely easy. It enables you to present all test sheets in a professional way.
